One of the biggest challenges in steel fabrication isn't making a weld—it's keeping the finished assembly straight, square, and within tolerance after the welding is complete.
Distortion becomes a major concern when multiple welds are placed close together. Whether you're fabricating heavy machinery, structural assemblies, mining equipment, or custom steelwork, concentrated weld heat can create significant movement in the material.
Understanding how heat treatment and controlled heating techniques can minimise distortion can save countless hours of rework and help ensure components leave the workshop exactly as designed.
Why Weld Distortion Occurs
Every weld introduces heat into the parent material.
As steel heats, it expands. As it cools, it contracts. The problem is that this expansion and contraction rarely occurs evenly.
When several welds are placed in close proximity:
- Heat accumulates in a concentrated area
- Cooling rates become inconsistent
- Residual stresses increase
- Material begins to pull in multiple directions
The result can be:
- Bowing
- Twisting
- Angular distortion
- Shrinkage
- Misalignment of critical dimensions
The larger the weld volume and the thicker the material, the greater the potential for movement.
The Challenge of Closely Spaced Welds
Fabricators frequently encounter this issue in:
- Stiffener installations
- Heavy plate fabrications
- Structural connections
- Base frames
- Chute and hopper fabrication
- Mining and earthmoving equipment
When welds are placed side-by-side or intersect one another, the heat affected zones overlap. This creates concentrated stress within a relatively small section of material.
Without proper planning, distortion can become difficult—and expensive—to correct.
How Controlled Heating Helps
While post-weld heat treatment is commonly associated with stress relief, controlled heating before and during fabrication can also play a significant role in distortion control.
By managing temperature throughout the welding process, fabricators can reduce thermal gradients and minimise uneven contraction.
Benefits include:
- More uniform expansion and contraction
- Reduced residual stress
- Improved dimensional stability
- Lower risk of cracking
- Less corrective work after fabrication
The goal is not simply to heat the steel, but to control how heat enters and leaves the component.

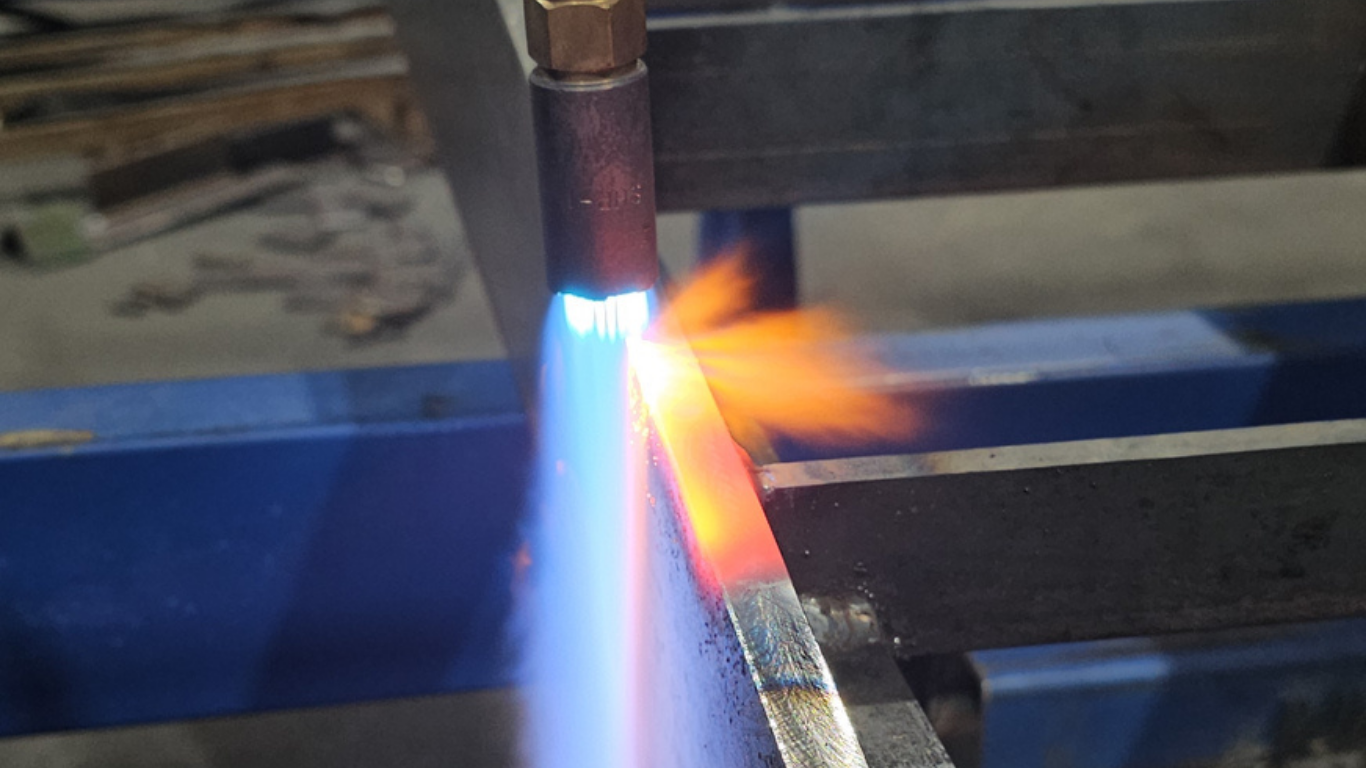

Preheating Before Welding
Preheating is often used for high-strength steels and thicker materials, but it can also assist with distortion control.
By raising the base material temperature before welding:
- Temperature differences are reduced
- Cooling rates become more controlled
- Shrinkage stresses decrease
- Weld zones behave more consistently
This is particularly beneficial when multiple welds are concentrated within a small area.
Stress Relief Heat Treatment
For critical fabrications, stress relieving after welding can significantly reduce residual stress trapped within the assembly.
The process involves heating the component to a controlled temperature and holding it for a specified period before allowing it to cool gradually.
Benefits include:
- Reduced internal stress
- Improved dimensional stability
- Lower risk of delayed cracking
- Better long-term performance
While stress relieving won't completely reverse distortion that has already occurred, it can prevent further movement during service and machining operations.
Heat Input Management Is Critical
Heat treatment alone is not the solution.
Successful distortion control begins with managing heat input during welding.
Experienced fabricators often use:
Balanced Weld Sequences
Alternating weld locations helps distribute heat more evenly throughout the assembly.
Back-Step Welding
Welding in short sections opposite to the overall weld direction can reduce cumulative shrinkage forces.
Skip Welding
Moving between locations prevents excessive heat build-up in one area.
Controlled Interpass Temperatures
Monitoring temperatures between weld passes prevents excessive heat accumulation and helps maintain consistency.
When Distortion Becomes Expensive
Many fabricators underestimate the true cost of distortion.
Excessive movement can lead to:
- Rework
- Additional machining
- Line boring corrections
- Fit-up issues
- Delayed project schedules
- Failed inspections
In severe cases, a component may need to be cut apart and re-fabricated.
Investing time in proper heat management is almost always cheaper than correcting distortion after the fact.
Planning for Success
The most successful fabrication projects consider distortion control before the first weld is laid.
Questions to ask include:
- Are multiple welds concentrated in one area?
- Is preheating required?
- What welding sequence will minimise movement?
- Will stress relieving be necessary?
- Are dimensional tolerances particularly critical?
Addressing these factors during planning can dramatically improve final outcomes.
Final Thoughts
When welds are positioned close together, distortion is often not a matter of if—but how much. Heat accumulation, residual stress, and uneven cooling can quickly turn a precisely fabricated assembly into a costly rework project.
By combining controlled heating, appropriate preheat procedures, sound welding practices, and stress relief heat treatment where required, fabricators can significantly reduce distortion and maintain dimensional accuracy.
In steel fabrication, managing heat is just as important as making the weld itself. The fabricators who understand this are the ones who consistently deliver high-quality, accurate, and reliable components.
